BajaNomad

Google Earth Anomaly

PaulW - 3-14-2022 at 08:11 AM

On 3/2 I placed my GPS track on GE. Then on 3/9 I drove the same route and placed my GPS track on GE and there is a huge disagreement.
I used reinstalled GE and my converter program and did it over and got the same result. Then I used the track from Inreach and still got the same result. So two independent GPS's agree.
I have been doing the same process of placing my GPS tracks on GE for over 20 years and have never had this issue. My track always agrees with GE even at max zoom.
If you examine the GE image, you can see that the 3/9 route highway 3 is shifted just like my track.
If you examine my Inreach Image from Garmin you can see it exactly shows the track correctly for the 3/9 trip.
My conclusion is the issue is not the GPS track but is something with GE?
Can anyone tell what happened?

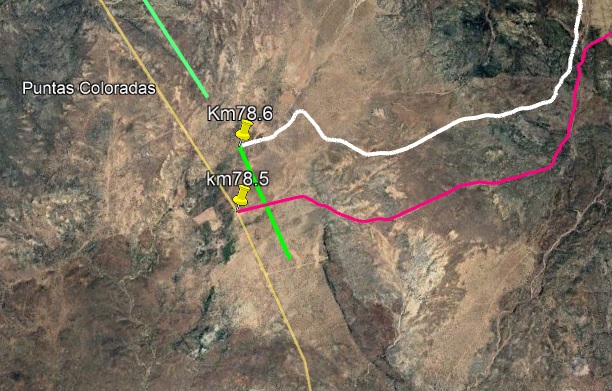

Google Earth Pic

GE Anomaly.jpg - 124kB

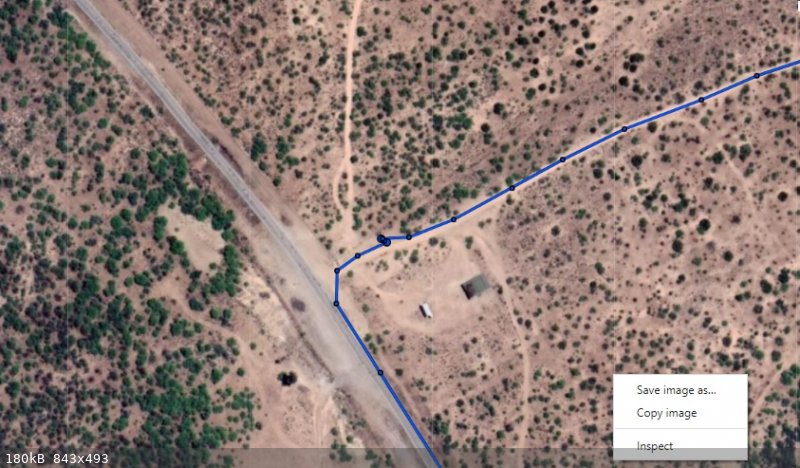

Inreach Pic

Inreach Image.jpg - 180kB

4x4abc - 3-14-2022 at 09:08 AM

what time stamp (month/year) is on the respective images?
in my experience, a track recorded in 2006 will match GE images of 2006 - but not 2021
a 2021 track recorded will only match 2021 GE images

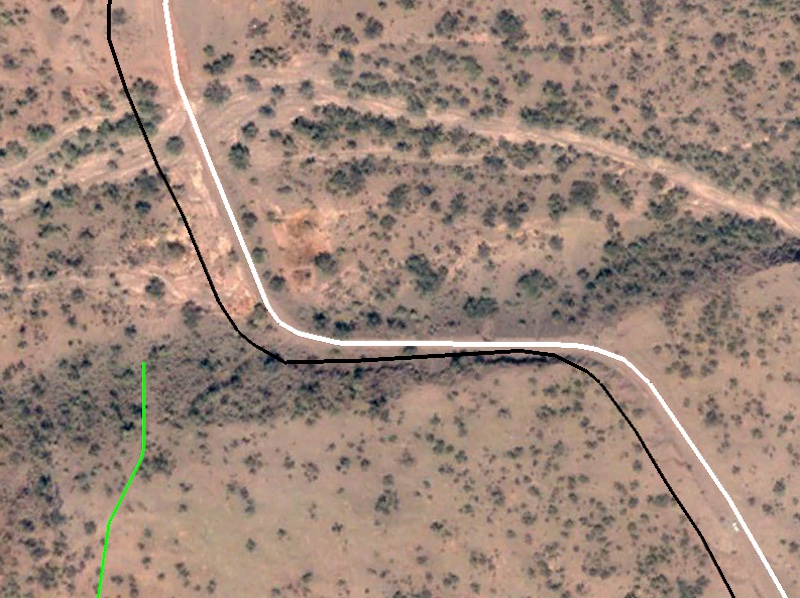

white track - 2006 recorded
black rack -2022 recorded

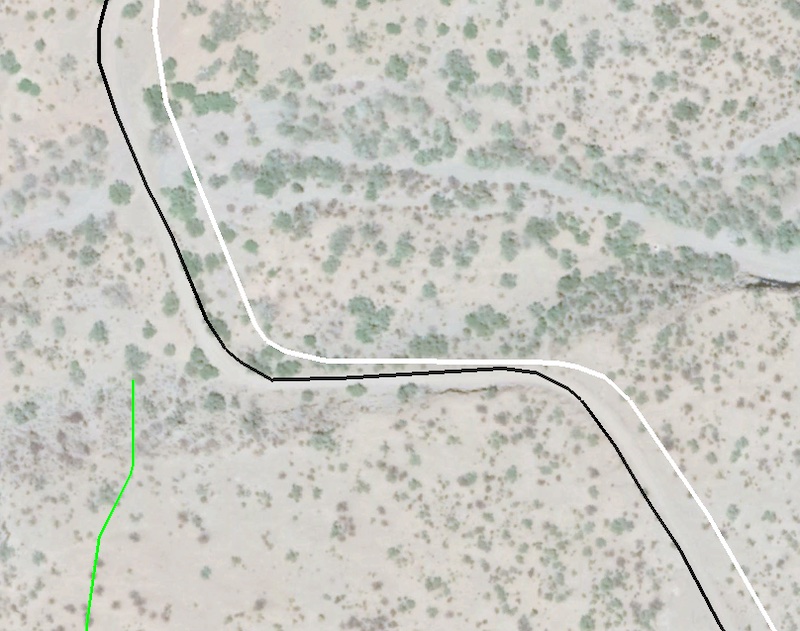

2006.jpg - 198kB
2006 GE image



2021.jpg - 163kB
2021 GE image

David K - 3-14-2022 at 09:16 AM

Map Datum change??

mtgoat666 - 3-14-2022 at 09:24 AM

GE photos are not precise, photo data may differ from gps data you collect.
Make sure all your data and photos are in same gps reference datum.
The visual separation you show in lines seems normal for remote areas.

AKgringo - 3-14-2022 at 09:30 AM

I know it is not the same thing, but I was driving a beach road south of Punta Conejo, and my automotive GPS showed me trolling just offshore. I didn't know my Kia could swim!

David K - 3-14-2022 at 09:32 AM

Quote: Originally posted by AKgringo
I know it is not the same thing, but I was driving a beach road south of Punta Conejo, and my automotive GPS showed me trolling just offshore. I didn't know my Kia could swim!


You must have goat's brand of GPS that thinks the sea level is a lot higher! :lol:

PaulW - 3-14-2022 at 09:48 AM

Datums verified. GPSs are the same as GE, WGS 1984

Yes, Many times repeated runs show a slight shift. That only shows up at large zoom levels as shown above. Nothing similar to my images where even the background shifted for the latest run.

Google does suggest a different computer setting causing a shift.
I suspected a new setting for my computer, so I did the same process on a different computer with all new downloads and installs and got the same result.

4x4abc - 3-14-2022 at 06:08 PM

Quote: Originally posted by PaulW
Datums verified. GPSs are the same as GE, WGS 1984

Yes, Many times repeated runs show a slight shift. That only shows up at large zoom levels as shown above. Nothing similar to my images where even the background shifted for the latest run.

Google does suggest a different computer setting causing a shift.
I suspected a new setting for my computer, so I did the same process on a different computer with all new downloads and installs and got the same result.

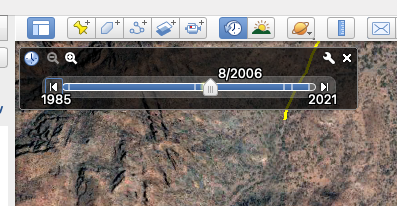

this is the date you need to pay attention to

Screen Shot 2022-03-14 at 6.06.47 PM.png - 150kB

PaulW - 3-14-2022 at 08:31 PM

I don't understand I made two tracks 7 days apart and got the result above.

PaulW - 3-14-2022 at 08:38 PM

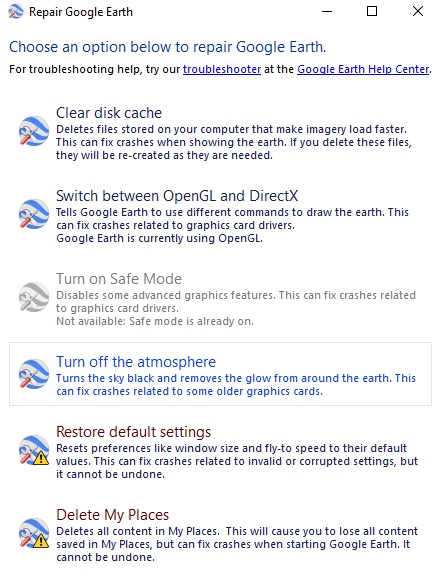

Google says to do a repair for GE
Here is the menu for doing the repair.
What do I choose

GE Repair.jpg - 105kB

PaulW - 3-21-2022 at 11:14 PM

Problem identified. My file was way to large. Braking the track file into two parts solves my issue.
The reason my files are so large is because I use a lot of waypoints, and my track point interval is 3 seconds on my Lowrance and 5 seconds on my inReach Explorer.

[Edited on 3-22-2022 by PaulW]
